Bridge Rectifiers - Bridge rectifier single-phase, Urmax 200V, If 25A, Ifsm 400A

Prod code: 41493

kbpc25005.pdf PDF

KBPC2502-DC

Price:  1.91 €
VAT:  0.46 €
Final price with tax:  2.36 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer DC COMPONENTS
Type of bridge rectifier single-phase
Max. off-state voltage 200V
Load current 25A
Max. forward impulse current 0.4kA
Version square
Case MB-25
Electrical mounting THT
Leads connectors FASTON
Features of semiconductor devices plastic case
Kind of package bulk
Max. forward voltage 1.1V

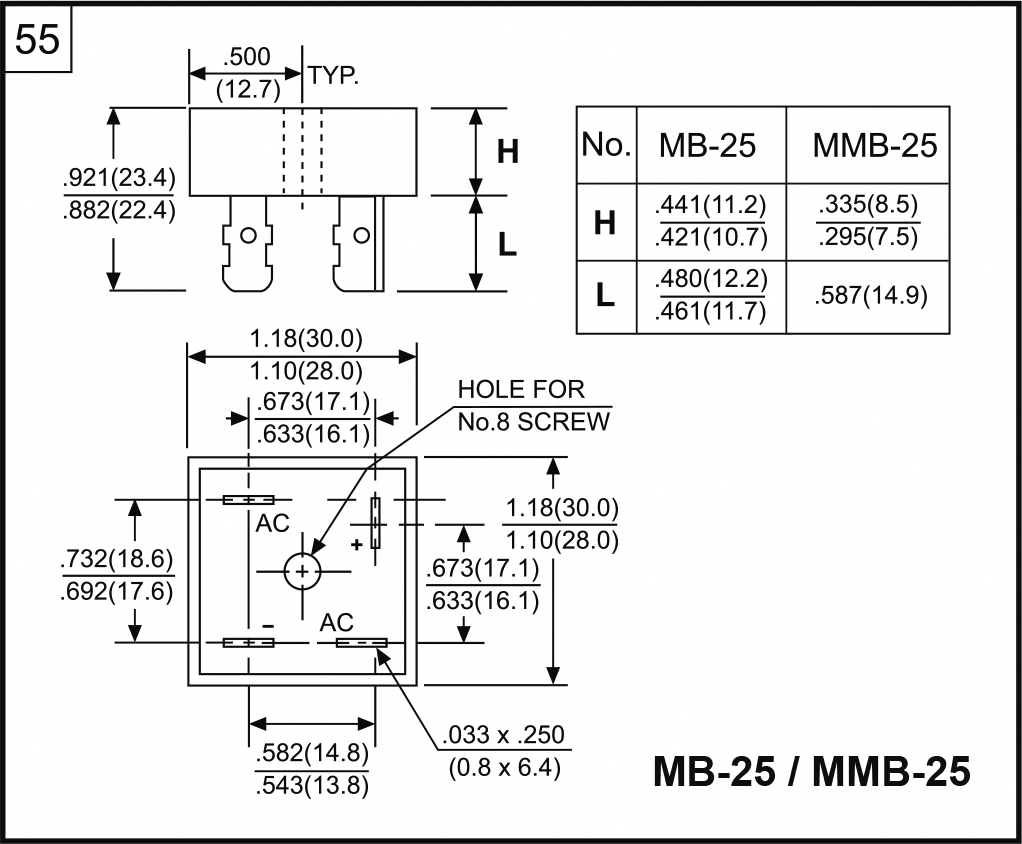

Dimensions  VIEW

Availability: With order
