Transformers PCB - Transformer encapsulated, 35VA, 230VAC, 15V, 2.33A, Mounting PCB

Prod code: 9831

TSZZ30/15V PDF

TSZZ30/15V

Price:  17.15 €
VAT:  4.11 €
Final price with tax:  21.26 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer INDEL
Type of transformer encapsulated
Power 35VA
Primary voltage 230V AC
Secondary voltage 1 15V
Secondary winding current 1 2.33A
Mounting PCB
IP rating IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B
Secondary winding terminals 9-13
Primary winding terminals 1-7
Insulation class II
Weight 700g
A dimension 63.6mm
A1 dimension 41.8mm
B dimension 53.6mm
B1 dimension 35.8mm
C dimension 51.5mm
C1 dimension 42.2mm
D dimension 72.5mm
D1 dimension 43.5mm
M dimension 32.5mm
P dimension 5mm
Electrical insulation strength 4kV/60s

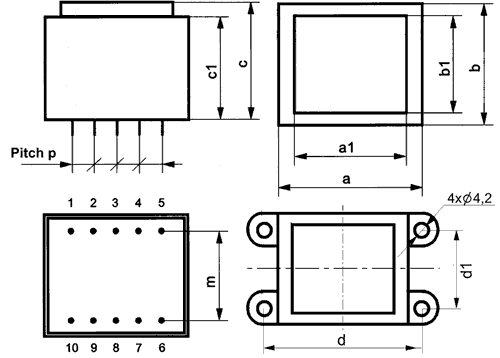

Dimensions  VIEW

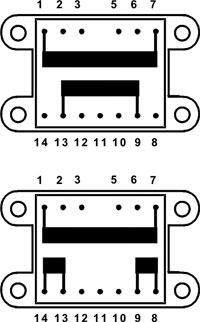

Schematic diagram  VIEW
Gross weight 686.5 g

Availability: With order
