Transformers PCB - Transformer encapsulated, 30VA, 230VAC, 12V, 12V, 1.25A, 1.25A

Prod code: 37695

TSZZM25/2X12V PDF

TSZZM25/2X12V

Price:  20.93 €
VAT:  5.02 €
Final price with tax:  25.95 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer INDEL
Type of transformer encapsulated
Power 30VA
Primary voltage 230V AC
Secondary voltage 1 12V
Secondary voltage 2 12V
Secondary winding current 1 1.25A
Secondary winding current 2 1.25A
Leads terminal block
Mounting screw type
Weight 600g
IP rating IP00
Thermal class Ta40B
Conform to the norm PN-EN 61558
Insulation class II

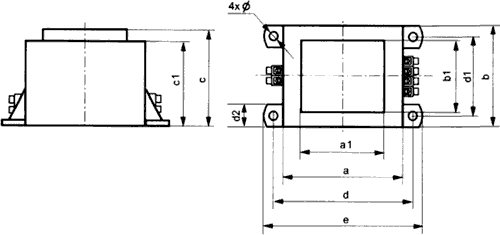

A dimension 63.6mm
A1 dimension 41.8mm
B dimension 53.6mm
B1 dimension 35.8mm
C dimension 47.2mm
C1 dimension 37.7mm
D dimension 72.5mm
D1 dimension 43.5mm
E dimension 81.8mm
Electrical insulation strength 4kV/60s
Diameter 4.2mm
Dimensions  VIEW
Gross weight 614.8 g

Availability: With order
