Μπουτόν - Switch vandal resistant, 2-position, SPDT, 0.5A/220VAC, 1A/24VDC

Κωδικός: 25383

V16-21H-S

Τιμή χωρίς ΦΠΑ:  7.17 €
Αξία ΦΠΑ:  1.72 €
Τελική με ΦΠΑ:  8.89 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer ONPOW
Switch type vandal resistant
Stable positions number 2-position
Contacts configuration SPDT
AC contacts rating 0.5 A / 220 VAC
DC contacts rating 1 A / 24 VDC
Sealing IP67
Switching method ON-ON
Leads for soldering
Operating temperature 20...55°C
Electrical life 50000cycles
Max. contact resistance: 50mΩ
Switching torque 4N
Mechanical durability 200000cycles
Mounting hole diameter 16mm
Body colour silver
Button shape prominent
Body material stainless steel
Test voltage 2kV
Contact material silver alloy

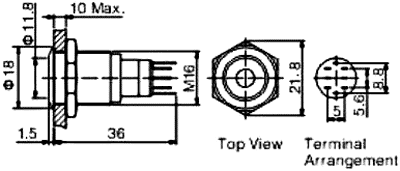

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
