Relays PCB - Relay electromagnetic, DPDT, Ucoil 12VDC, 0.5A/120VAC, 1A/24VDC

Prod code: 17596
AZ822-2C-12DSE PDF

AZ822-2C-12DSE
Price:  1.53 €
VAT:  0.37 €
Final price with tax:  1.89 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ZETTLER
Relay type electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating 0.5 A / 120 VAC
DC contacts rating 1 A / 24 VDC
Contact current max. 2A
Switched voltage max 250V AC, max 220V DC
Relay variant miniature
Mounting PCB
Coil resistance 960Ù
Coil voltage min. 8.4V DC
Coil voltage max. 30V DC
Operate time 5ms
Body dimensions 20 x 9.8 x 12mm
Release time 2ms
Coil power consumption 74mW
Sealing IP64
Operating temperature 55...90°C
Weight 4.5g
Relay series AZ822
Contact resistance 50mÙ
Terminal pitch 5mm

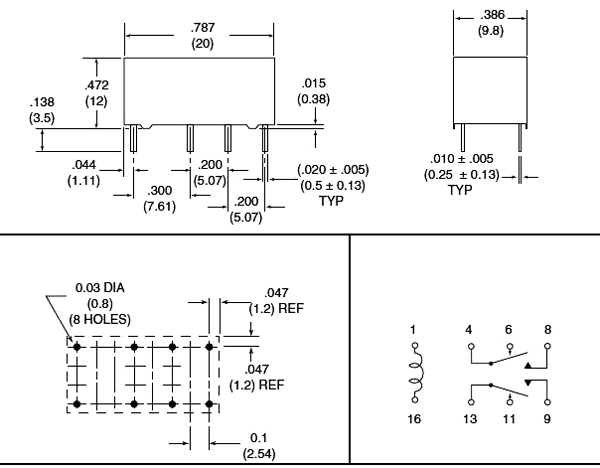

Dimensions  VIEW

Availability: On stock
