Τροφοδοτικό LED - Pwr sup.unit switched-mode, for LED diodes, 150W, 12VDC, 12.5A

Κωδικός: 26386

HLG-150H-12B PDF

HLG-150H-12B

Τιμή χωρίς ΦΠΑ:  53.73 €
Αξία ΦΠΑ:  12.90 €
Τελική με ΦΠΑ:  66.63 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application for LED diodes
Kind of power supply CV+CC
Power 150W
Output voltage 12V DC
Output current 12.5A
Supply voltage 90...305V AC, 127...431V DC
Sealing IP67
Body dimensions 228 x 68 x 38.8mm
Power supply/converter features rated parameters obtained at full load
Protection overload, overheating, voltage growth, short-circuit
Weight 1.15kg
Operating temperature 40...70°C
Electrical connection 300mm wires
Number of outputs 1
Series HLG-150H
Efficiency 91.5%

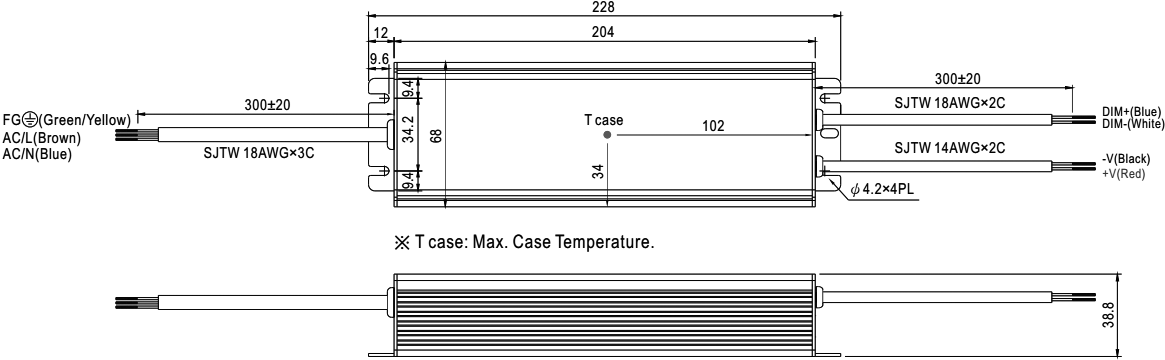

Dimensions  VIEW

Additional functions:
  • active PFC
  • dimming function 1-10VDC
  • PWM controlled dimming function
  • resistance dimming function
Διαθεσιμότητα: Με παραγγελία
