Specifications |
| Manufacturer |
ECE |
| Fuse type |
PTC polymer |
| Rated current |
3A |
| Max surge current |
100A |
| Switched current |
5.1A |
| Voltage max. |
16V DC |
| Power |
2.3W |
| Min. resistance |
34mΩ |
| Max resistance |
105mΩ |
| Terminal pitch |
5.1mm |

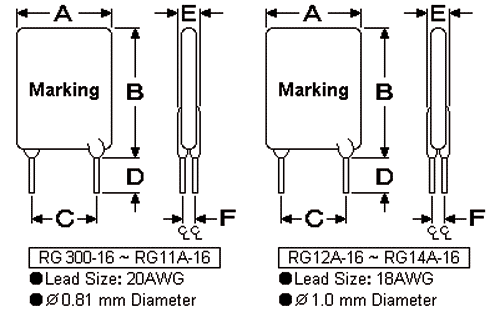

| A dimension |
7.1mm |
| B dimension |
11mm |
| C dimension |
5.1mm |
| D dimension |
7.6mm |
| E dimension |
3mm |
| F dimension |
1.2mm |
| Operating temperature |
40...85°C |
| Leads dimensions |
0.81 x 7.6mm |
| Dimensions |
 VIEW |
| |
|
