DC-DC Converter - Converter DC/DC 2W Uout 5V DC Uin 5V DC 0.03ppm/°C 100kHz

Κωδικός: 12510

QDC2WSIL5/5 PDF

QDC2WSIL5/5

Τιμή χωρίς ΦΠΑ:  5.60 €
Αξία ΦΠΑ:  1.34 €
Τελική με ΦΠΑ:  6.95 €
Ποσότητα:
* Αποστολή σε 2-5 εργάσιμες ημέρες.
Specifications
Manufacturer QLT POWER
Converter type DC/DC
Power 2W
Input voltage 5V
Output voltage 5V DC
Case SIL
Efficiency 75%
Operating temperature 40...85°C
Temperature coefficient 0.03ppm/°C
Switching frequency 100kHz
Input voltage tolerance 10%
Output voltage tolerance 5%
Output ripple 75Vpp
Protection short circuit protection
Insulation voltage 1kV DC
Min. insulation resistance 1GΩ

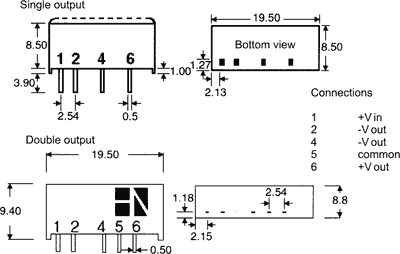

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
