Transformers PCB - Transformer encapsulated, 2VA, 400VAC, 24V, PCB, IP00, 90g, A 28mm

Prod code: 39583

TEZ2/D400/24V PDF

TEZ2/D400/24V

Price:  5.02 €
VAT:  1.20 €
Final price with tax:  6.22 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer BREVE TUFVASSONS
Type of transformer encapsulated
Power 2VA
Primary voltage 400V AC
Secondary voltage 1 24V
Mounting PCB
IP rating IP00
Conform to the norm PN-EN 61558-2-1,   PN-EN 61558-2-6
Thermal class Ta60B
Secondary winding terminals 7-9
Primary winding terminals 1-5
Weight 90g
A dimension 28mm
A1 dimension 20mm
A2 dimension 20mm
B dimension 33mm
C dimension 24mm
Electrical insulation strength 4kV/60s

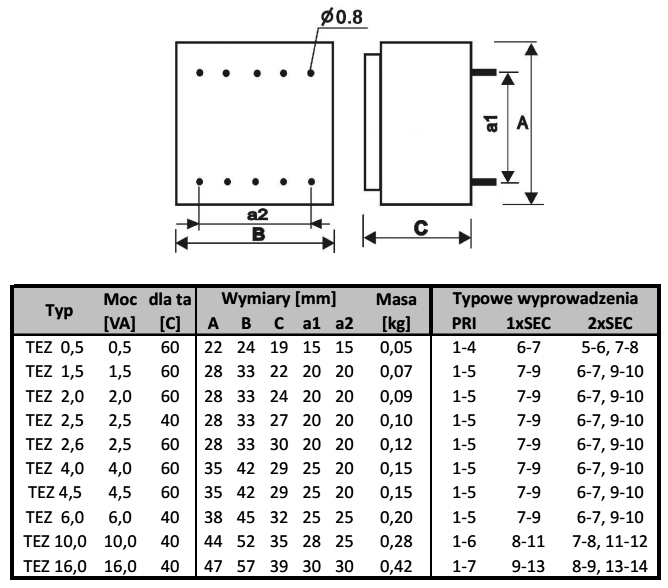

Dimensions  VIEW
Gross weight 82.2 g

Availability: On stock
