| Specifications |
| Manufacturer | FINDER |
| Type of module | timer |
| Counting range | 0,05s...100h |
| Kind of output | DPDT |
| Output 1 electrical parameters | 250V AC / 10A |
| Manufacturer series | 85 |
| Number of operation modes | 4 |
| Operating temperature | -20...60°C |
| Number of pins | 8 |
| IP rating | IP40 |
| The additional control inputs | START |
| Indication | LED |
| Counter operation modes | delayed switching on, ON for the set interval, pulse after a specified time, symmetrical cyclical operation pulse first, with the control contact S |
| Mounting | for DIN rail mounting, on panel, socket |
| Related items | 94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.02, 94.02.0, 94.P4 |

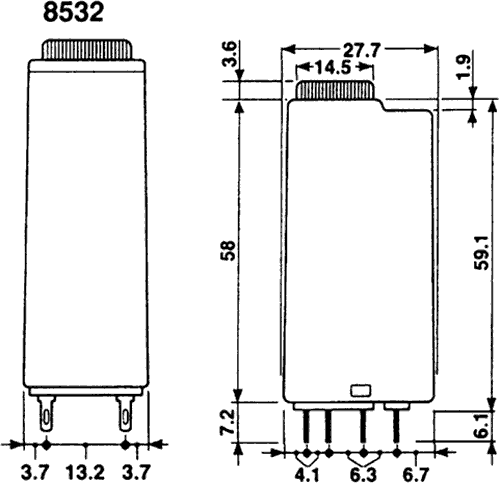

| Dimensions |  VIEW |
| Output configuration | VIEW |
|
