Specifications |
| Manufacturer |
ANLY ELECTRONICS |
| Module type |
controller |
| Kind of temperature sensor |
JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter |
temperature |
| Supply voltage |
90...260V AC |
| Output 1 type |
SPST-NO |
| Output 2 type |
4...20mA |
| Regulation for output 1 |
AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID |
| Mounting |
desktop |
| Operating temperature |
10...50°C |
| Controlled parameter range |
1999...9999, depends on temperature sensor |
| Output 1 electrical parameters |
240VAC/3A |
| Type of display used |
2x LED 4 digits |
| Body dimensions |
96 x 48 x 83mm |
| The programming method |
foil keypad |
| Additional functions |
heating or cooling control, led bar, non-volatile EEPROM memory, scroll menu, LED status indicator |
| Mounting hole diameter |
91 x 46mm |
| Sealing |
IP20 |
| Display height 1 |
10mm |
| Display 2 height |
7mm |
| Output 3 type |
SPST-NO |
| Output 3 electrical parameters |
240VAC/3A |

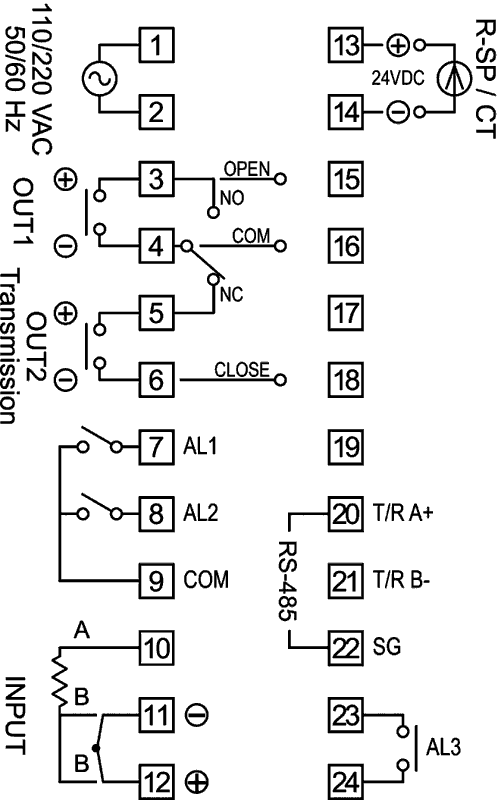

| Output configuration |
 VIEW |
| |
|
