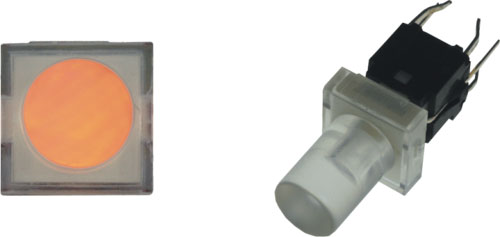

Tact Switch - Switch microswitch monostable DC load:0.5A/12V LED THT

Prod code: 10389
PB6149L-13 PDF

PB6149L-13
Price:  1.30 €
VAT:  0.31 €
Final price with tax:  1.62 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.05 A / 12 VDC
Mounting THT
Illumination LED
Backlight colour red/green
Switching torque 1.6N
Body dimensions 7.5 x 7.5mm
Button height 18mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 5.08x5.08mm
Operating temperature 20...70°C
Actuator colour colourless
Leads for PCB, straight
Max. contact resistance: 100mΩ
Min. insulation resistance 100MΩ
Electrical life 300000cycles
Dimensions  VIEW
Output configuration  VIEW
Picture of product  VIEW
Contacts layout  VIEW

Availability: With order
