Tact Switch - Switch microswitch monostable Backlight colour:red/green LED

Prod code: 10314
KS01-BL-13 PDF

KS01-BL-13
Price:  1.30 €
VAT:  0.31 €
Final price with tax:  1.62 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.01 A / 35 VDC
Mounting THT
Illumination LED
Backlight colour red/green
Switching torque 1.3N
Body dimensions 12mm
Button height 14.3mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 5x5mm
Operating temperature 20...60°C
Actuator colour colourless
Leads for PCB, straight
Max. contact resistance: 30mÙ
Min. insulation resistance 100MÙ
Electrical life 100000cycles
Dimensions  VIEW
Output configuration  VIEW

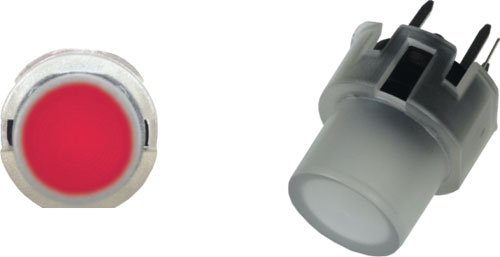

Picture of product  VIEW
Contacts layout  VIEW

Availability: With order
