Äéáêüðôçò - ROCKER, DPST, Pos 2, OFF-ON, 16A/250VAC, green, neon lamp 230V

Prod code: 37795

R2101C5GBG9NWC PDF

R2101C5GBG9NWC

Price:  1.89 €
VAT:  0.45 €
Final price with tax:  2.35 €
Amount:
Warning Long delivery time
Specifications
Manufacturer CANAL ELECTRONIC
Type of switch ROCKER
Contacts configuration DPST
Number of positions 2
Switching method OFF-ON
AC contacts rating @R 16A / 250V AC
Key button colour green
Illumination neon lamp 230V
Max. contact resistance: 20mΩ
Body colour black
Operating temperature -20...125°C
Leads 6,3x0,8mm connectors
Electrical life 10000 cycles
Mounting hole diameter 30.2x22mm
Button marking I-O
Backlight colour green
Shape rectangular
Stable positions number 2

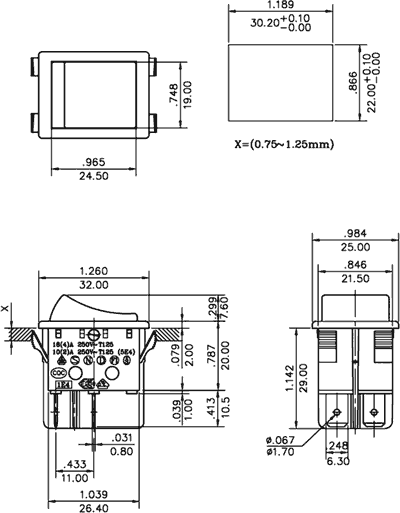

Dimensions  VIEW
Gross weight 13.435 g

Availability: With order
