Äéáêüðôçò - ROCKER, 2-position, SPDT, ON-ON, 10A/250VAC, black, none, 50mÙ

Prod code: 31499
R13112C02BB PDF

R13112C02BB
Price:  1.25 €
VAT:  0.30 €
Final price with tax:  1.55 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Switch type ROCKER
Stable positions number 2-position
Contacts configuration SPDT
Switching method ON-ON
AC contacts rating 10 A / 250 VAC
Key button colour black
Illumination none
Max. contact resistance: 50mΩ
Body colour black
Flammability rating UL94V-2
Operating temperature 20...85°C
Leads 4.8x0.8mm connectors
Panel thickness max 3mm
Electrical life 6000cycles
Mounting hole diameter ˜20.2mm
Number of positions 2
Button marking blank
Shape round
Backlight colour none
Associated items R13-112-12
Body material polyamide

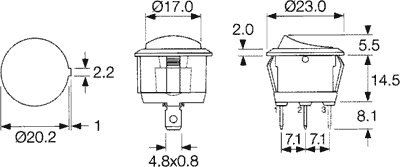

Dimensions  VIEW

Availability: On stock
