Specifications |
| Manufacturer |
TE Connectivity |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
24V DC |
| Contact current max. |
30A |
| Coil voltage min. |
18V DC |
| Relay series |
T9A |
| Relay variant |
power |
| Operating temperature |
-55...85°C |
| Mounting |
PCB |
| Coil resistance |
576Ω |
| Body dimensions |
32.5x27.4x27.9mm |
| Switched voltage |
max. 28V DC, max. 277V AC |
| Coil power consumption |
1W |
| AC contacts rating @R |
30A / 240V AC |
| Contact resistance |
75mΩ |
| DC contacts rating @R |
10A / 28V DC |
| Leads |
for PCB |
| Contact material |
AgCdO |
| Mechanical durability |
10000000 cycles |

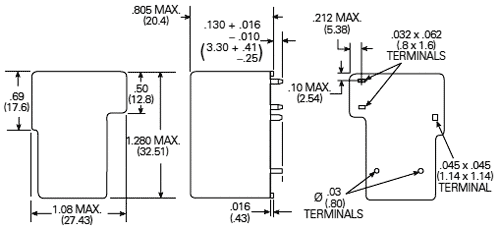

| Dimensions |
 VIEW |
| Gross weight |
29.2 g |
| |
|
