Specifications |
| Manufacturer |
Recoy/RAYEX ELECTRONICS |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPDT |
| Rated coil voltage |
9V DC |
| Contact current max. |
30A |
| Relay series |
L90 |
| Relay variant |
power, sealed |
| Operating temperature |
-55...85°C |
| Mounting |
PCB |
| Coil resistance |
97Ω |
| Switched voltage |
max. 30V DC, max. 240V AC |
| Coil power consumption |
900mW |
| AC contacts rating @R |
30A / 240V AC |
| Contact resistance |
50mΩ |
| DC contacts rating @R |
20A / 30V DC |
| Leads |
for PCB |
| Operate time |
15ms |
| Release time |
15ms |
| Contact material |
AgCdO |
| Mechanical durability |
10000000 cycles |
| Electrical life |
100000 cycles |

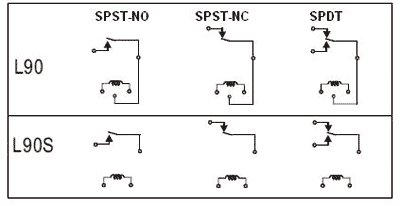

| Output configuration |
 VIEW |

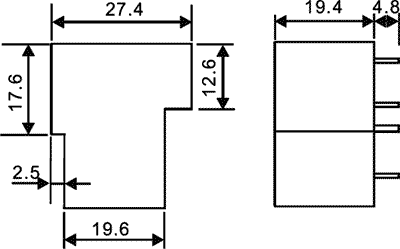

| Dimensions |
VIEW |
| Gross weight |
25.5 g |
| |
|
