Trimmer - Potentiometer mounting, single turn,horizontal, 4.7kΩ, 100mW

Κωδικός: 36905

CA6V-4K7 PDF

CA6V-4K7

Τιμή χωρίς ΦΠΑ:  0.20 €
Αξία ΦΠΑ:  0.05 €
Τελική με ΦΠΑ:  0.25 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer ACP
Type of potentiometer mounting
Kind of potentiometer horizontal,
Resistance 4.7kΩ
Power 100mW
Tolerance ±20%
Characteristics linear
Potentiometer series CA6V
Potentiometer standard 6mm
Mechanical rotation angle 235 ±10°
Torque 0,2...2Ncm
Max. operating voltage 100V
Operating temperature -25...70°C
Mounting THT
Terminal pitch 5x5mm
Track material carbon
Electrical rotation angle 215 ±20°
Body dimensions 6.5x6.5x3.5mm

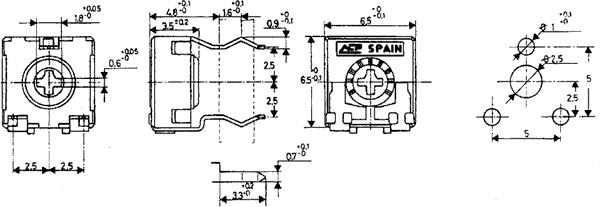

Dimensions  VIEW
Gross weight 2 g

Διαθεσιμότητα: Αμεσα
