Trimmer - Potentiometer mounting, single turn, horizontal, 100k, 250mW

Prod code: 19032

T75R-100K

Price:  0.36 €
VAT:  0.09 €
Final price with tax:  0.45 €
Amount:
Contact us
Specifications
Manufacturer SR Passives
Potentiometer type mounting
Potentiometer kind single turn, horizontal
Resistance 100k
Power 250mW
Tolerance 10%
Characteristics linear
Potentiometer standard 1/4"
Mechanical rotation angle 260 10
Operating temperature 55...125C
Mounting THT
Terminal pitch 2.54x2.54mm
Track material cermet
Body dimensions 7.2 x 7 x 5mm
Temperature coefficient 100ppm/C
Potentiometer features precise
Mechanical durability 200cycles
Similar models from other manufacturers 3362

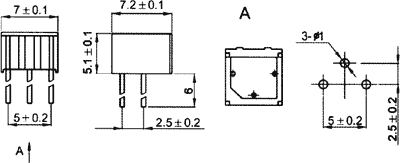

Dimensions  VIEW

Availability: With order
