Κρυσταλλικός Ταλαντωτής - Generator crystal, 16MHz, THT, DIP8, 5V, -10÷75°C, 100ppm/°C, 23mA

Κωδικός: 17377

QOS016D8 PDF

QOS016D8

Τιμή χωρίς ΦΠΑ:  2.30 €
Αξία ΦΠΑ:  0.55 €
Τελική με ΦΠΑ:  2.85 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer EPSON
Generator type crystal
Frequency 16MHz
Mounting THT
Case DIP8
Operating voltage 5V
Operating temperature 10...75°C
Output load type 10 TTL, CMOS
Temperature coefficient 100ppm/°C
Rated current 23mA
Time stability 5ppm/year
Pulse symmetry 40/60%

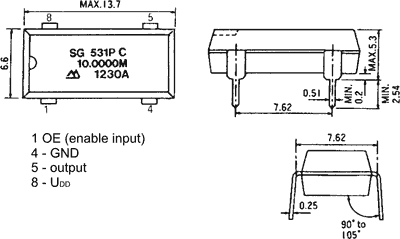

Dimensions  VIEW

Generators features:
  • stand-by option
  • CMOS technology - reduced power consumption
  • pins compatible with oscillator modules in metal case
Διαθεσιμότητα: Αμεσα
