EMI filter - Filter anti-interference, wideband, 50VDC, THT, 12x12x11mm

Prod code: 38680
BNP002-02 PDF

BNP002-02
Price:  11.60 €
VAT:  2.78 €
Final price with tax:  14.39 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MURATA
Type of filter anti-interference
Kind of filter wideband
Max. operating current 10A
Operating voltage 50V DC
Mounting THT
Operating temperature -40...100°C
Body dimensions 12x12x11mm
Attenuation 40dB @ 1MHz...1GHz
Min. insulation resistance 1000MΩ
Dielectric strength 300V
Filter application as anti-interference filters in signal circuit
Series BNP

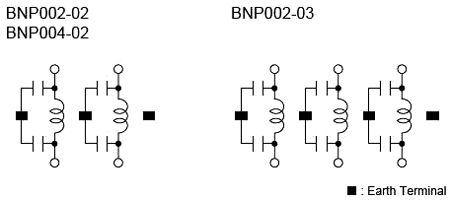

Schematic diagram  VIEW

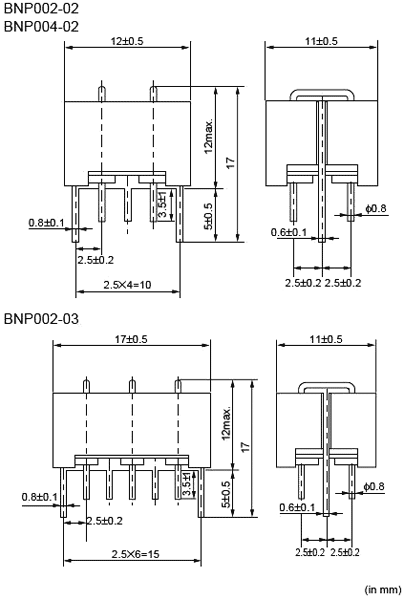

Dimensions  VIEW
Gross weight 2.895 g

Availability: With order
