Specifications |
| Manufacturer |
SCHURTER |
| Filter type |
anti-interference |
| Operating voltage |
250V AC |
| Inductance of individual winding |
10mH |
| Capacitance Cx |
15nF |
| Capacitance Cy |
2.2nF |
| Operating current max. |
1A |
| Leads |
6.3x0.8mm connectors |
| Operating temperature |
25...100°C |
| Leakage current |
250µA |
| Enclosure material |
metal |
| Body dimensions |
25 x 29 x 42mm |
| Number of poles |
1 |
| Dimensions |
 VIEW |

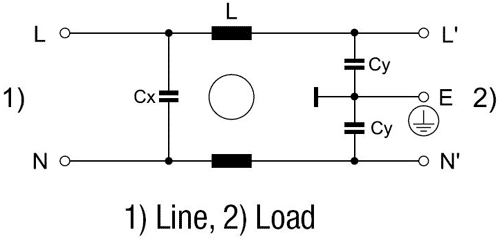

| Schematic diagram |
VIEW |
| |
|
