Specifications |
| Manufacturer |
SUNON |
| Fan type |
AC |
| Fan kind |
axial |
| Supply voltage |
230V AC |
| Fan dimensions |
120x120x38mm |
| Power consumption |
11W |
| Rated current |
60mA |
| Fans efficiency |
119 (±10%)m3/h |
| Noise level |
36dBA |
| Bearing type |
slide bearing |
| Rotational rate/speed |
2000rpm |
| Weight |
550g |
| Current and power consumption tolerance |
15% |
| Frequency |
50Hz |
| Min. insulation resistance |
500MΩ |
| Fan material |
thermoplastic |
| Enclosure material |
aluminium |
| Insulation class |
B |
| Operating temperature |
10...70°C |
| Leads |
2.8x0.3mm connectors |
| Static pressure |
2.03mm H2O |
| Flammability rating |
UL94V-0 |

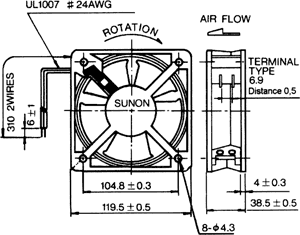

| Dimensions |
 VIEW |
| |
|
