Transformers PCB - Encapsulated mains transformer, 30VA, 230/115/2x9V

Prod code: 1377

TSPZ30/2X9V PDF

TSPZ30/2X9V

Price:  25.58 €
VAT:  6.14 €
Final price with tax:  31.71 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer INDEL
Transformer type encapsulated
Power 30VA
Primary voltage 230V AC
Secondary voltage 1 9V
Secondary voltage 2 9V
Secondary winding current 1 1.67A
Secondary winding current 2 1.67A
Mounting PCB
Pri./sec. insulation strength 4kV/60s
Sealing IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B
Insulation class II
Weight 550g
A dimension 57.2mm
A1 dimension 50mm
B dimension 68mm
B1 dimension 62.5mm
C dimension 34.8mm
P dimension 5mm
m dimension 45mm

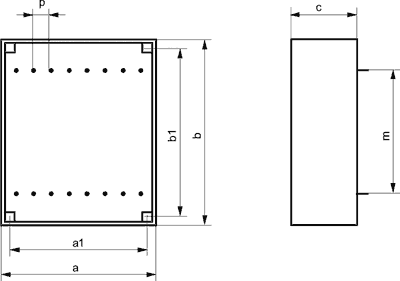

Dimensions  VIEW

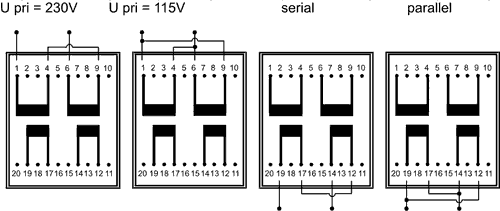

Schematic diagram  VIEW

Availability: With order
