DC-DC Converter - Converter DC/DC, 1W, Uin 21.6....26.4V, Uout 12VDC, Uout2 -12VDC

Prod code: 39419

TMA2412D PDF

TMA2412D

Price:  5.94 €
VAT:  1.43 €
Final price with tax:  7.36 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TRACO POWER
Type of converter DC/DC
Power 1W
Input voltage 21.6...26.4V
Output voltage 12V DC
Output voltage 2 -12V DC
Output current 40mA
Output current 2 -40mA
Case SIP
Body dimensions 19.5x10.2x7.1mm
Weight 2.6g
Efficiency 79%
Operating temperature -40...85°C
Switching frequency 100kHz
Protection short-circuit
Insulation voltage 1000V
Series TMA
Number of outputs 2

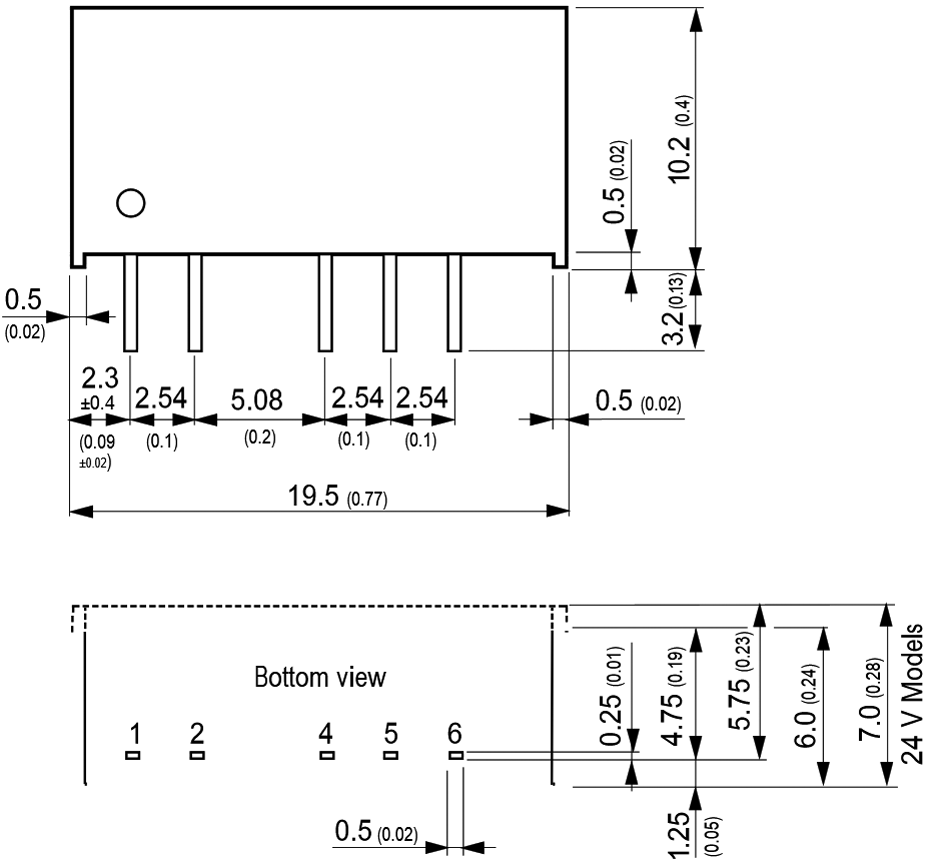

Dimensions  VIEW
Gross weight 2.603 g

Availability: On stock
