Transformers PCB - Transformer encapsulated 2.4VA 230VAC 24V 24V 0.05A 0.05A

Prod code: 13628

TSZZ2.4/2X24V PDF

TSZZ2.4/2X24V

Price:  4.28 €
VAT:  1.03 €
Final price with tax:  5.31 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer INDEL
Transformer type encapsulated
Power 2.4VA
Primary voltage 230V AC
Secondary voltage 1 24V
Secondary voltage 2 24V
Secondary winding current 1 0.05A
Secondary winding current 2 0.05A
Mounting PCB
Pri./sec. insulation strength 4kV/60s
Sealing IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B
Secondary winding terminals 6-7, 9-10
Primary winding terminals 1-5
Insulation class II
Weight 120g

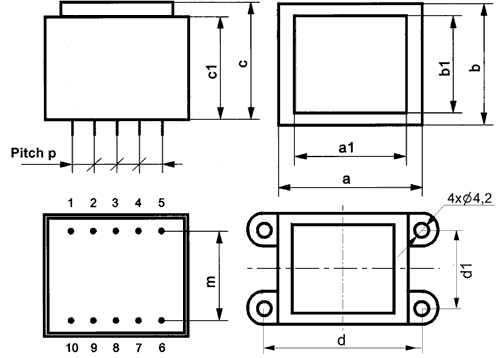

A dimension 32.1mm
A1 dimension 23.6mm
B dimension 27.1mm
B1 dimension 20.2mm
C dimension 26.8mm
C1 dimension 23.2mm
M dimension 20mm
P dimension 5.05mm
Dimensions  VIEW

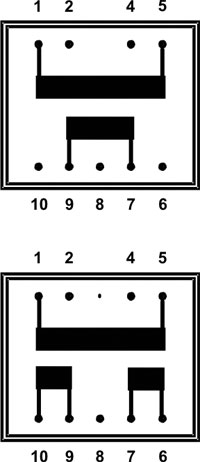

Schematic diagram  VIEW

Availability: With order
