Διακόπτης - Switch toggle, 3-position, 4P3T, ON-OFF-ON, 5A/125VAC, 5A/28VDC
Prod code:
17412
PDF
IC4201T1B1M1QE
Click to enlarge
Price:
8.44 €
VAT:
2.03 €
Final price with tax:
10.47 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
IC SWITCHES
Switch type
toggle
Stable positions number
3-position
Contacts configuration
4P3T
Switching method
ON-OFF-ON
AC contacts rating
5 A / 125 VAC
DC contacts rating
5 A / 28 VDC
Leads
for soldering
Operating temperature
30...85°C
Mounting hole diameter
6.35mm
Toggle type
round
Number of positions
3
Knob height
10.34mm
Electrical life
50000cycles
Contact plating
silver plated
Actuator material
brass
Body material
stainless steel
Contact material
copper alloy
Min. insulation resistance
1000MΩ
Lever plating
chromium
Contacts pitch
10mm

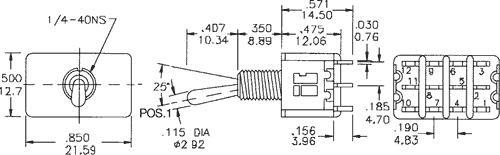

Dimensions
VIEW
Availability:
On stock
