Button - Switch push-button, Positions 2, DPST-NO, 16A/250VAC, 16A/28VDC

Prod code: 32290

AE-C7053AFNAA PDF

AE-C7053AFNAA

Price:  6.36 €
VAT:  1.53 €
Final price with tax:  7.88 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer BULGIN
Type of switch push-button
Number of positions 2
Stable positions number 2-position
Contacts configuration DPST-NO
AC contacts rating @R 16A / 250V AC
DC contacts rating @R 16A / 28V DC
Actuator colour red
Illumination neon lamp 230V
Backlight colour red
Leads 6,3x0,8mm connectors
Switching method OFF-ON
Operating temperature -25...70°C
Mounting on panel
Button shape round
Mounting hole diameter Ø25mm
Body colour black
Manufacturer series 7000

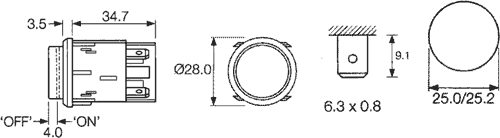

Dimensions  VIEW
Contacts layout  VIEW
Gross weight 13.44 g

Availability: On stock
