Connector - Socket, wire-board, male, NS25, 2.54mm, PIN 10, THT, 250V, 3A, tinned

Prod code: 29814

NS25-W10K

Price:  0.13 €
VAT:  0.03 €
Final price with tax:  0.16 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer NINIGI
Connector socket
Type of connector wire-board
Kind of connector male
Connector series NS25
Contacts pitch 2.54mm
Number of pins 10
Electrical mounting THT
Rated voltage 250V
Current rating 3A
Contact plating tinned
Flammability rating UL94V-0
Operating temperature -25...85°C
Type of pin configuration 1x10
Max. contact resistance: 10mΩ
Spatial orientation angled 90°
Enclosure material polyamide

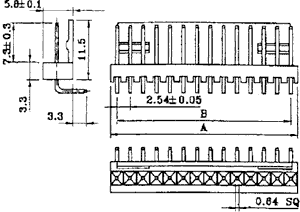

A dimension 25.4mm
B dimension 22.86mm
Leads dimensions 0.64x0.64x3.3mm
Dimensions  VIEW

Additional information
    Gross weight: 1.516 g
Availability: On stock
