Äéáêüðôçò - ROCKER 2 position SPST ON OFF 16A/250VAC green IP65 50mΩ

Prod code: 14639

R13238B801G PDF

R13238B801G

Price:  2.76 €
VAT:  0.66 €
Final price with tax:  3.42 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Switch type ROCKER
Stable positions number 2-position
Contacts configuration SPST
Switching method ON-OFF
DC contacts rating 25 A / 14 VDC
Key button colour green
Sealing IP65
Illumination LED 12V DC
Max. contact resistance: 50mÙ
Body colour black
Flammability rating UL94V-2
Operating temperature 20...85°C
Leads 6.3x0.8mm connectors
Panel thickness max 4.5mm
Mounting hole diameter 29.4 x 13.8mm
Number of positions 2
Button marking blank
Backlight colour green
Body dimensions 31.5 x 18.5 x 21.1mm
Dielectric strenght 1.5kV AC

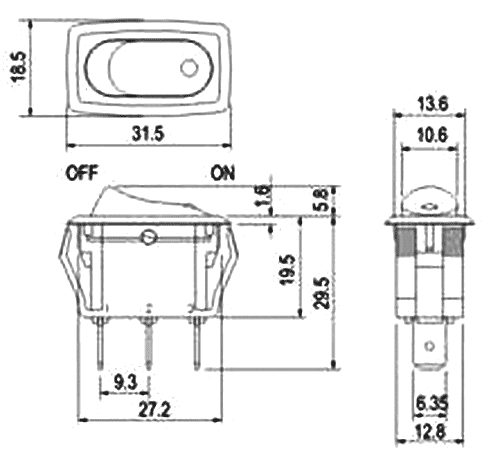

Dimensions  VIEW

Availability: On stock
