Διακόπτης - ROCKER, 2-position, DPST, ON-OFF, 16A/250VAC, red, neon lamp 230V

Κωδικός: 31601

R2101C5GBR9NWC PDF

R2101C5GBR9NWC

Τιμή χωρίς ΦΠΑ:  1.45 €
Αξία ΦΠΑ:  0.35 €
Τελική με ΦΠΑ:  1.79 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer CANAL ELECTRONIC
Switch type ROCKER
Stable positions number 2-position
Contacts configuration DPST
Switching method ON-OFF
AC contacts rating 16 A / 250 VAC
Key button colour red
Illumination neon lamp 230V
Max. contact resistance: 20mΩ
Body colour black
Operating temperature 20...125°C
Leads 6.3x0.8mm connectors
Electrical life 10000cycles
Mounting hole diameter 30.2 x 22mm
Number of positions 2
Button marking I-O
Backlight colour red
Shape rectangular

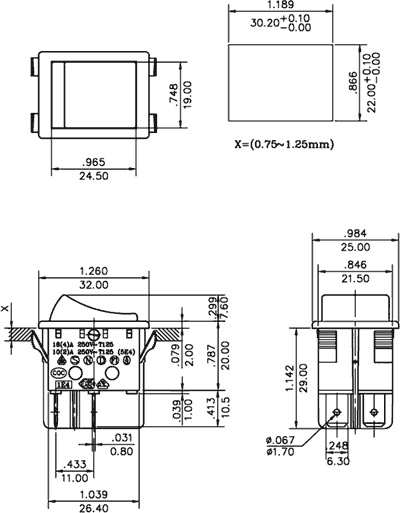

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
