Solid state relay - Relay solid state, Ucntrl 3÷32VDC, 350A, 24÷280VAC, Series SSR-Z

Κωδικός: 29231

SSR-35028ZD3B PDF

SSR-35028ZD3B

Τιμή χωρίς ΦΠΑ:  63.00 €
Αξία ΦΠΑ:  15.12 €
Τελική με ΦΠΑ:  78.12 €
Ποσότητα:
* Αποστολή σε 2-5 εργάσιμες ημέρες.
Specifications
Manufacturer QLT POWER
Relay type solid state
Control voltage 3...32V DC
Operating current max. 350A
Switched voltage 24...280V AC
Relay variant 1-phase
Relay series SSR-Z
Switching method zero voltage switching

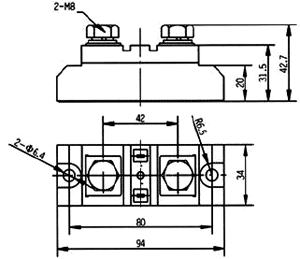

Dimensions  VIEW

Relay features:
  • maximal load current with use of suitable heatsink
  • indication
Διαθεσιμότητα: Με παραγγελία
