Relays PCB - Relay electromagnetic SPST-NO Ucoil 12VDC 5A/250VAC 5A/30VDC

Prod code: 14405
JV-12S-KT PDF

JV-12S-KT
Price:  1.75 €
VAT:  0.42 €
Final price with tax:  2.18 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer FUJITSU-TAKAMISAWA
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating 5 A / 250 VAC
DC contacts rating 5 A / 30 VDC
Contact current max. 5A
Switched voltage max 150V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 720Ù
Coil voltage min. 9V DC
Operate time 8ms
Body dimensions 17.5 x 10 x 12.5mm
Release time 4ms
Coil power consumption 200mW
Operating temperature 40...70°C
Relay series JV
Contact resistance 70mÙ
Contact material AgSnO2
Terminal pitch 6.35mm

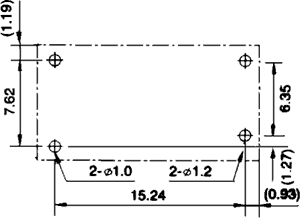

Dimensions  VIEW

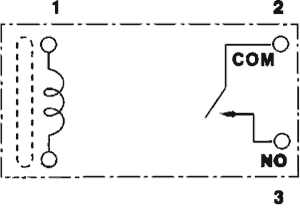

Schematic diagram  VIEW

Availability: With order
