Relay electromagnetic, SPDT, Ucoil 9VDC, 10A/120VAC, 10A/24VDC

Prod code: 35412

LEG-9 PDF

LEG-9

Price:  0.71 €
VAT:  0.17 €
Final price with tax:  0.88 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer RAYEX ELECTRONICS
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 9V DC
AC contacts rating @R 10A / 120VAC
DC contacts rating @R 10A / 24VDC
Contact current max. 10A
Switched voltage max 240V AC, max 100V DC
Relay variant miniature
Mounting PCB
Coil resistance 225Ω
Operate time 8ms
Body dimensions 19.5 x 15.8 x 15mm
Release time 8ms
Coil power consumption 360mW
Operating temperature 25...80°C
Relay series LEG
Contact resistance 100mΩ
Terminal pitch 2mm
Coil current 40mA

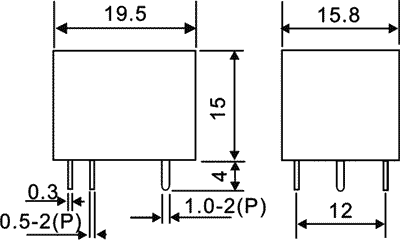

Dimensions  VIEW

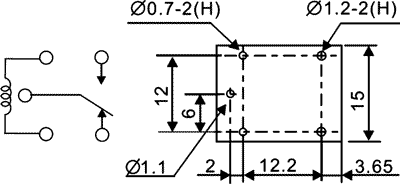

Output configuration  VIEW

Availability: With order
