Relays PCB - Relay electromagnetic, SPDT, Ucoil 6VDC, 16A/250VAC, 16A/24VDC

Prod code: 28508
RT314006 PDF

RT314006
Price:  3.83 €
VAT:  0.92 €
Final price with tax:  4.74 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 6V DC
AC contacts rating 16 A / 250 VAC
DC contacts rating 16 A / 24 VDC
Contact current max. 16A
Switched voltage max 400V AC, max 300V DC
Relay variant miniature
Mounting THT
Coil resistance 90Ω
Coil voltage min. 4.2V DC
Operate time 7ms
Body dimensions 29 x 15.7 x 12.7mm
Release time 3ms
Coil power consumption 400mW
Sealing IP40
Mechanical durability 30000000cycles
Operating temperature 40...70°C
Weight 14g
Relay series RT1
Switching capacity 3kVA
Contact material AgNi
Terminal pitch 5mm
Coil current 66.66mA
Height 15.7mm
Number of pins 8
Max surge current 25A

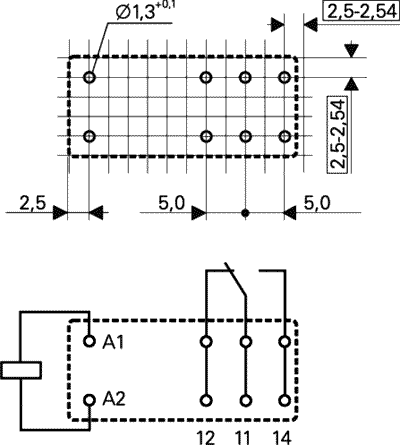

Dimensions  VIEW
Output configuration  VIEW

Availability: On stock
