Relays PCB - Relay electromagnetic, SPDT, Ucoil 24VDC, 8A/250VAC, 8A/24VDC, 8A

Prod code: 35906
V23057B0006A401 PDF

V23057B0006A401
Price:  5.66 €
VAT:  1.36 €
Final price with tax:  7.02 €
Amount:
Warning Long delivery time
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating @R 8A / 250VAC
DC contacts rating @R 8A / 24VDC
Contact current max. 8A
Switched voltage max 400V AC, max 300V DC
Relay variant miniature, vertical
Mounting PCB
Coil resistance 1.2kΩ
Coil voltage min. 16V DC
Body dimensions 28 x 10.4 x 25.1mm
Coil power consumption 480mW
Mechanical durability 2000000cycles
Operating temperature 40...70°C
Relay series Card E
Contact material AgCdO
Terminal pitch 2.54mm

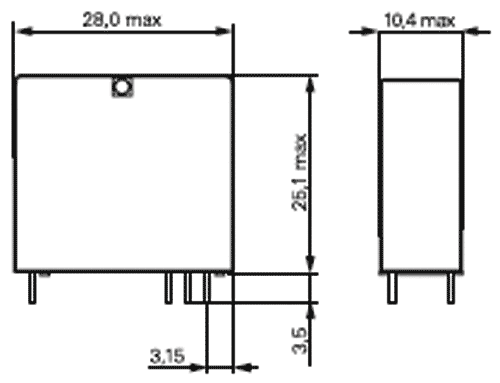

Dimensions  VIEW
Output configuration  VIEW

Availability: With order
