Relays PCB - Relay 1P10A 12VDC

Prod code: 1560

LEG-12 PDF

LEG-12

Price:  0.73 €
VAT:  0.18 €
Final price with tax:  0.91 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RAYEX ELECTRONIC
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating 10 A / 120 VAC
DC contacts rating 10 A / 24 VDC
Contact current max. 10A
Switched voltage max 240V AC, max 100V DC
Relay variant miniature
Mounting PCB
Coil resistance 400Ų
Operate time 8ms
Body dimensions 19.5 x 15.8 x 15mm
Release time 8ms
Coil power consumption 360mW
Operating temperature 25...60°C
Relay series LEG
Contact resistance 100mŲ
Terminal pitch 2mm
Coil current 30mA

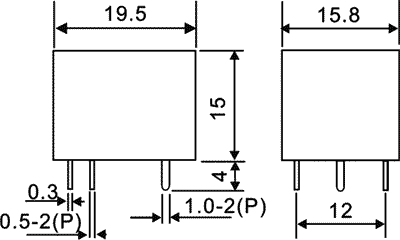

Dimensions  VIEW

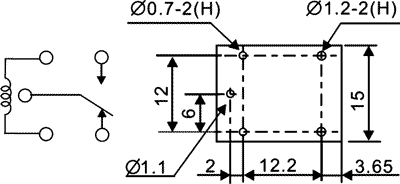

Output configuration  VIEW

Availability: On stock
