Open Frame power supply - Pwr sup.unit switched-mode, 60W, 120÷370VDC, 85÷264VAC, 7.5VDC

Prod code: 25489

EPS-65-7.5 PDF

EPS-65-7.5

Price:  14.69 €
VAT:  3.52 €
Final price with tax:  18.21 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 60W
Supply voltage 85...264V AC, 120...370V DC
Number of outputs 1
Output voltage 7.5V DC, 7.13...8.25V DC
Output current 8A
Kind of power supply open
Efficiency 84%
Mounting for building in
Protection overload, voltage growth, short-circuit
Weight 150g
Body dimensions 101.6 x 50.8 x 29mm
Operating temperature 30...70°C
Electrical connection plug with 3,96mm pitch
Series EPS-65
Associated items BVH-21T-P1.1, SVH-200BK22, VHR-3N, VHR-4N

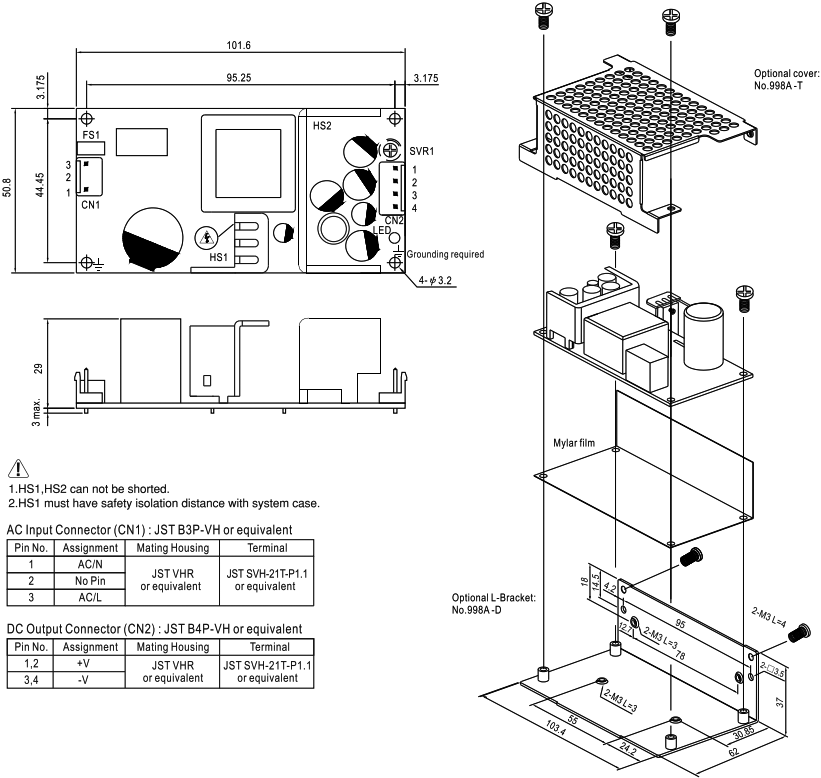

Dimensions  VIEW

Power supply/converter features:
  • no load power consumption <0,3W
  • rated parameters obtained at full load
Availability: With order
