Pwr sup.unit pulse, 50W, 5VDC, 15VDC, -5VDC, -15VDC, 5A, 1A, 0.5A - 21.85 EUR : acdcshop.gr


Τροφοδοτικό - Pwr sup.unit pulse, 50W, 5VDC, 15VDC, -5VDC, -15VDC, 5A, 1A, 0.5A	Κωδικός: 17265
PDF	RQ-50C

Κάντε Κλικ για Μεγέθυνση Pwr sup.unit pulse, 50W, 5VDC, 15VDC, -5VDC, -15VDC, 5A, 1A, 0.5A

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	50W
Output voltage	5V DC
Output voltage 2	15V DC
Output voltage 3	5V DC
Output voltage 4	15V DC
Output current	5 (0.5...6)A
Output current 2	5 (0.2...1.5)A
Output current 3	0.5 (0...1)A
Output current 4	0.5 (0...1)A
Supply voltage	88...264V AC, 125...373V DC
Weight	410g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	4
Operating temperature	20...70°C
Body dimensions	99 x 97 x 36mm
Power supply/converter features	rated parameters obtained at full load
Series	RQ-50
Efficiency	75%
Case type	905B
Associated items	DRL-01, DRP-03A

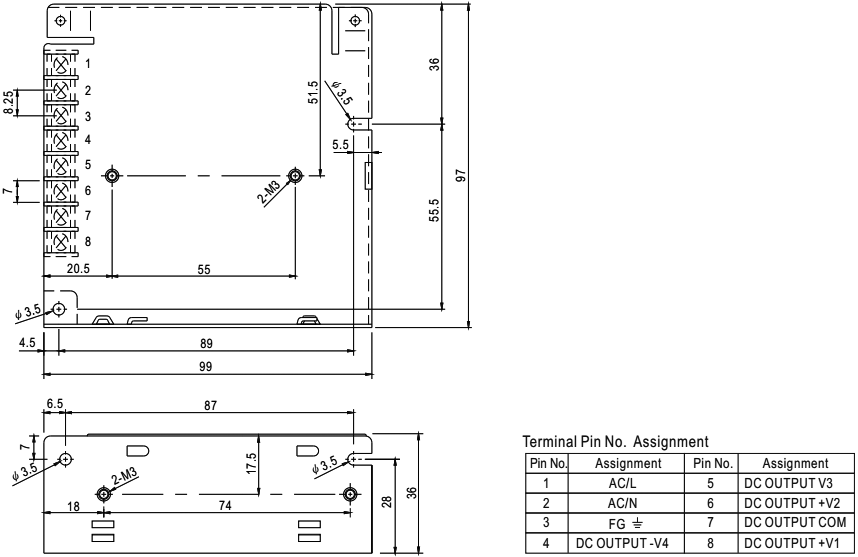

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
