Τροφοδοτικό - Pwr sup.unit pulse, 150.2W, 5VDC, 3.3VDC, 24VDC, -12VDC, 10A, 10A

Κωδικός: 17230

QP-150-3D PDF

QP-150-3D

Τιμή χωρίς ΦΠΑ:  102.06 €
Αξία ΦΠΑ:  24.49 €
Τελική με ΦΠΑ:  126.55 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 150.2W
Output voltage 5V DC
Output voltage 2 3.3V DC
Output voltage 3 24V DC
Output voltage 4 12V DC
Output current 10 (3...15)A
Output current 2 10 (0...15)A
Output current 3 2.5 (0.3...3)A
Output current 4 0.6 (0...1)A
Supply voltage 90...264V AC, 127...370V DC
Weight 0.93kg
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 4
Operating temperature 10...60°C
Body dimensions 199 x 99 x 50mm
Power supply/converter features rated parameters obtained at full load
Series QP-150
Efficiency 76%
Case type 916B
Additional functions active PFC
Associated items DRL-02, DRP-02A, MHS-012

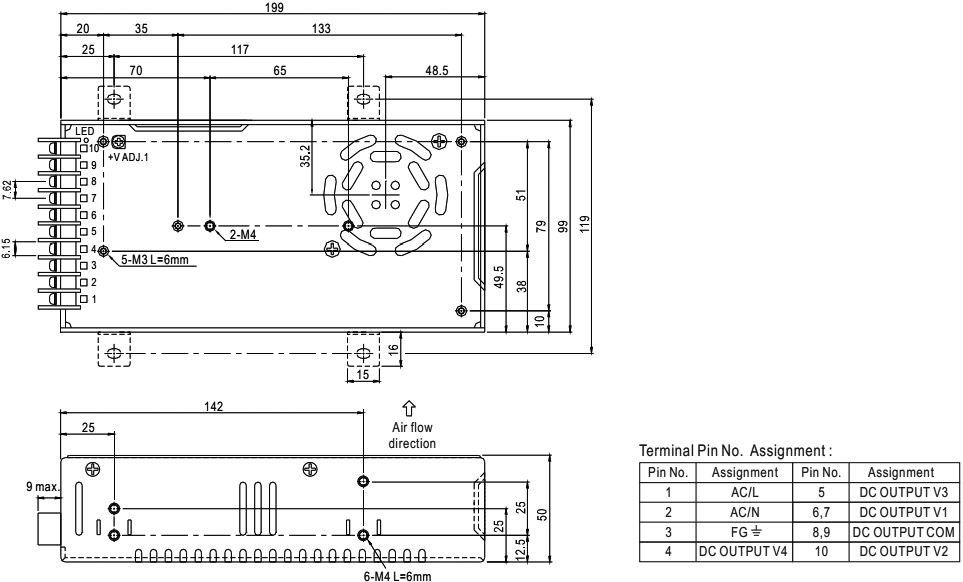

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
