Pwr sup.unit pulse, 130.9W, 5VDC, 12VDC, 7.7A, 7.7A, 248÷373VDC - 30.66 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 130.9W, 5VDC, 12VDC, 7.7A, 7.7A, 248÷373VDC	Prod code: 17256
PDF	RD-125A

Click to enlarge Pwr sup.unit pulse, 130.9W, 5VDC, 12VDC, 7.7A, 7.7A, 248÷373VDC

Price:	30.66 €
VAT:	7.36 €
Final price with tax:	38.02 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	130.9W
Output voltage	5V DC
Output voltage 2	12V DC
Output current	7.7 (2...15)A
Output current 2	7.7 (0.5...10)A
Supply voltage	88...264V AC, 248...373V DC
Weight	700g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	2
Operating temperature	25...70°C
Body dimensions	199 x 98 x 38mm
Power supply/converter features	rated parameters obtained at full load
Series	RD-125
Efficiency	82%
Case type	902A
Associated items	DRL-02, DRP-03A

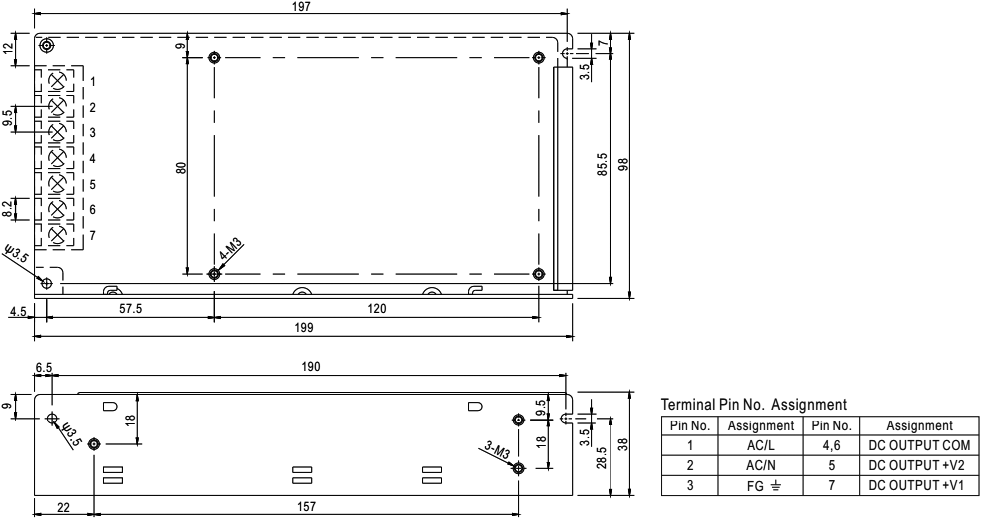

Dimensions	VIEW

Availability: With order
