Pwr sup.unit for LEDs pulse 58.8W Outputs 1 Usupp 90÷264VAC - 15.41 EUR : acdcshop.gr


LED power supplies - Pwr sup.unit for LEDs pulse 58.8W Outputs 1 Usupp 90÷264VAC	Prod code: 11415
PDF	LPC-60-1400

Click to enlarge Pwr sup.unit for LEDs pulse 58.8W Outputs 1 Usupp 90÷264VAC

Price:	15.41 €
VAT:	3.70 €
Final price with tax:	19.11 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Application	for LED diodes
Kind of power supply	current source
Power	58.8W
Output voltage	9...42V DC
Output current	1400mA
Supply voltage	90...264V AC, 127...370V DC
Sealing	IP67
Body dimensions	162.5 x 42.5 x 32mm
Power supply/converter features	rated parameters obtained at full load
Protection	voltage growth, short-circuit
Weight	400g
Operating temperature	30...70°C
Electrical connection	600mm wires
Number of outputs	1
Series	LPC-60
Efficiency	85%
Case type	976A

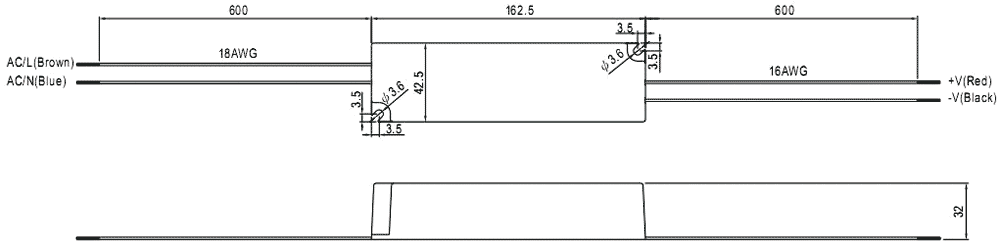

Dimensions	VIEW

Availability: With order
