Ποτενσιομετρο - Potentiometer mounting, single turn, horizontal 25kΩ 100mW

Κωδικός: 15469

PT6LV-25K PDF

PT6LV-25K

Τιμή χωρίς ΦΠΑ:  0.54 €
Αξία ΦΠΑ:  0.13 €
Τελική με ΦΠΑ:  0.67 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer PIHER
Potentiometer type mounting
Potentiometer kind single turn, horizontal
Resistance 25kΩ
Power 100mW
Tolerance 20%
Characteristics linear
Potentiometer series PT6LV
Potentiometer standard 6mm
Mechanical rotation angle 235 ±5°
Torque 0,2...2Ncm
Max. operating voltage 100V
Operating temperature 25...70°C
Mounting THT
Terminal pitch 5x5mm
Track material carbon
Electrical rotation angle 220 ±20°
Body dimensions 6.3 x 3.3mm

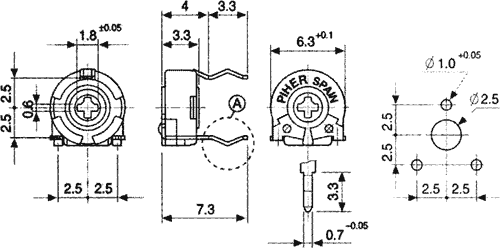

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
