Trimmer - Potentiometer mounting, single turn, horizontal, 100kΩ, 150mW

Κωδικός: 35808

PT10LV-100K PDF

PT10LV-100K

Τιμή χωρίς ΦΠΑ:  0.29 €
Αξία ΦΠΑ:  0.07 €
Τελική με ΦΠΑ:  0.36 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer PIHER
Type of potentiometer mounting
Kind of potentiometer single turn, horizontal
Resistance 100kΩ
Power 150mW
Tolerance ±20%
Characteristics linear
Potentiometer series PT10LV
Potentiometer standard 10mm
Mechanical rotation angle 235 ±5°
Torque 0,4...2Ncm
Max. operating voltage 200V
Operating temperature 25...70°C
Mounting THT
Terminal pitch 5x10mm
Track material carbon
Electrical rotation angle 220 ±20°
Body dimensions ˜10.3 x 4.5mm
Potentiometer features rectangle hole suitable for screwdriver

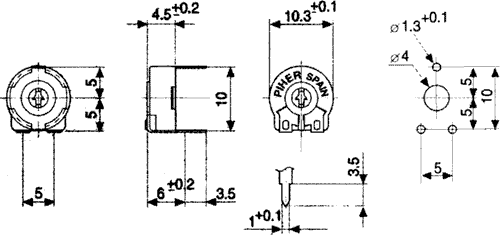

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
