Loudspeaker - Loudspeaker, miniature, general purpose, 0.5W, 8Ù, 100÷20000Hz
Prod code:
19275
PDF
LD-SP-U15/8A
Click to enlarge
Price:
1.29 €
VAT:
0.31 €
Final price with tax:
1.61 €
Amount:
Long delivery time
Long delivery time
Specifications
Manufacturer
LOUDITY
Sound transducer type
loudspeaker
Loudspeaker type
miniature, general purpose
Power
0.5W
Maximum power
0.7W
Impedance
8Ù
Operating temperature
20...60°C
Sound frequency
100...20000Hz
Sound level
86dB
Resonant frequency
950Hz
Diameter
15mm
Impedance tolerance
15%
Sound output tolerance
3dB
Height
3.5mm
Mounting
self-adhesive

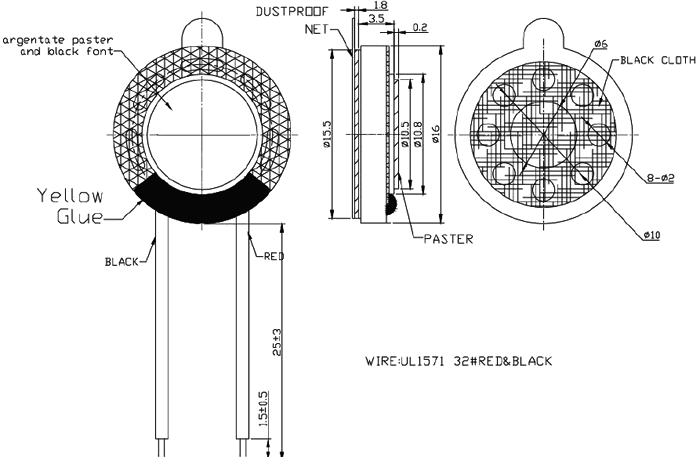

Dimensions
VIEW
Availability:
With order
