Loudspeaker - Loudspeaker, miniature,full-range,general purpose, 4W, 8Ù, IP63

Prod code: 36454

VS-SC-4.9FL-8 PDF

VS-SC-4.9FL-8

Price:  11.27 €
VAT:  2.70 €
Final price with tax:  13.97 €
Amount:
Warning Long delivery time
Specifications
Manufacturer VISATON
Type of sound transducer loudspeaker
Kind of loudspeaker full-range,   general purpose,   miniature
Power 4W
Maximum power 5W
Impedance
Body dimensions 90x40x14mm
Operating temperature -25...70°C
Sound frequency 120...20000Hz
Sound level 83dB
Resonant frequency 220Hz
IP rating IP63
Weight 54g
Height 14mm

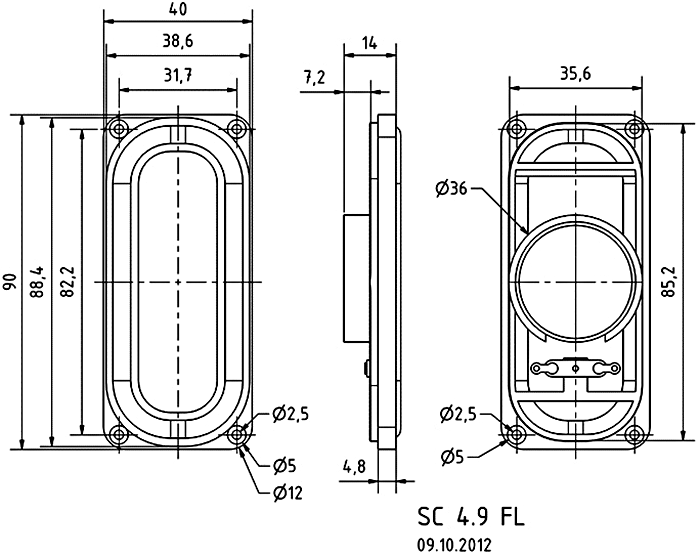

Dimensions  VIEW
Gross weight 53.03 g

Availability: With order
