Limit Switch - Limit switch with adjustable lever and roller

Κωδικός: 9647

D4N-1A2G PDF

D4N-1A2G

Τιμή χωρίς ΦΠΑ:  31.11 €
Αξία ΦΠΑ:  7.47 €
Τελική με ΦΠΑ:  38.58 €
Ποσότητα:
* Αποστολή σε 2-5 εργάσιμες ημέρες.
Specifications
Manufacturer OMRON
Sensor type limit switch
Actuator type adjustable lever R 25-89mm, plastic roller O17,5mm
Output configuration NO + NC
Contact current max. 10A
Switched voltage max 240V AC, max 250V DC
Connection PG13,5
Sealing IP65
Body dimensions 64 x 31 x 30mm
Operating temperature 30...70°C
Body material plastic
Switches features slow action contacts
AC contacts rating 3 A / 240 VAC
DC contacts rating 0.55 A / 125 VDC
Switching frequency max 2Hz

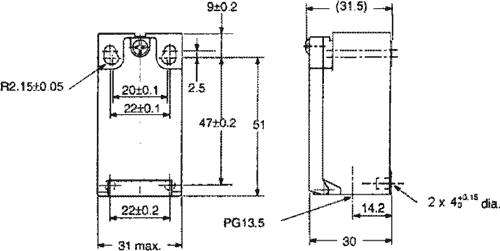

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
