Ψυγεία IC - Heatsink, U type 24K/W 6,35mm, blackened TO220,TO202

Κωδικός: 7755

D03A

Τιμή χωρίς ΦΠΑ:  0.39 €
Αξία ΦΠΑ:  0.09 €
Τελική με ΦΠΑ:  0.49 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer STONECOLD
Heatsink type moulded
Heatsink shape U
Application TO202, TO220
Colour black
Length 19.05mm
Width 13.21mm
Height 6.35mm
Thermal resistance 24K/W
Material aluminium
Material finishing anodized
Mounting screwed

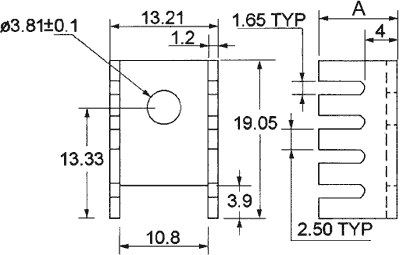

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
