Heatsinks - Heatsink series PR40 lenght 75mm, anodized black

Prod code: 7827
PR40/75/SE PDF

PR40/75/SE
Price:  4.44 €
VAT:  1.06 €
Final price with tax:  5.50 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ALUTRONIC
Heatsink type extruded
Application TO3
Colour black
Length 75mm
Width 65mm
Height 24mm
Thermal resistance 3.8K/W
Material finishing anodized
Active surface 146cm2
Weight 88g
Plate thickness 4mm

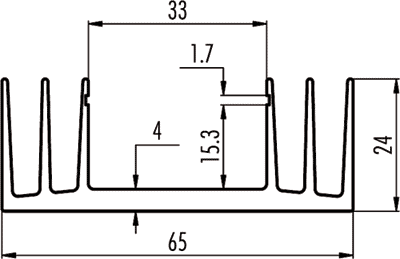

Dimensions  VIEW

Availability: On stock
