Ψυγεία IC - Heatsink black finished U 13K/W 30mm for solder mount

Κωδικός: 7770

HS-003 PDF

HS-003

Τιμή χωρίς ΦΠΑ:  0.72 €
Αξία ΦΠΑ:  0.17 €
Τελική με ΦΠΑ:  0.89 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer STONECOLD
Heatsink type moulded
Heatsink shape U
Application TO220
Colour black
Width 25.4mm
Height 12.7mm
Thermal resistance 13K/W
Material aluminium
Material finishing anodized
Mounting soldered, screwed
Pins width 1.9mm
Pins thickness 0.8mm

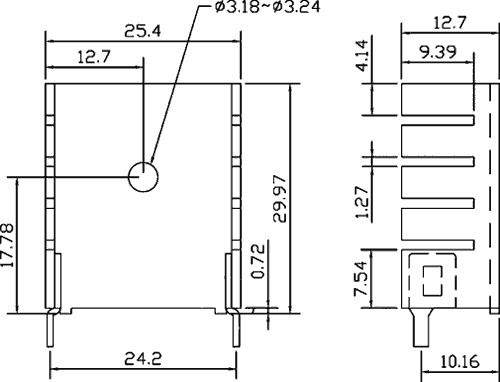

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
